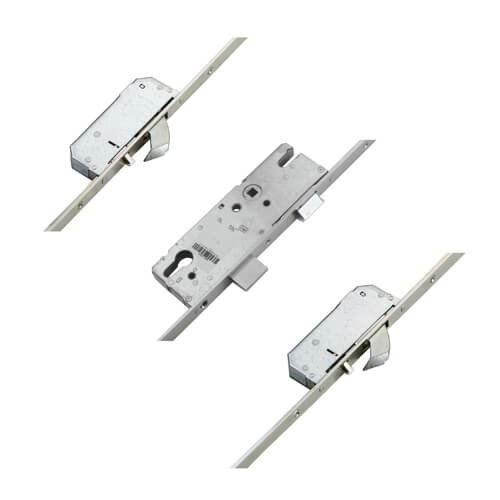

Winkhaus AV2 + Latch Deadbolt 2 Hooks Flat 20mm Faceplate Autolocking Multipoint Door Lock
Price range: £172.76 through £180.30
Hooks on this lock are automatically engaged as the door is closed without needing to lift the handle. The handle will retract the hooks from the inside and a further turn of the key deadlocks the door.
To transform this multipoint lock into an electronic locking solution, simply attach the 12V DC Winkhaus AV2 motor (available separately) and connect using the Winkhaus AV2 cable to the wide range of Winkhaus access control products available.

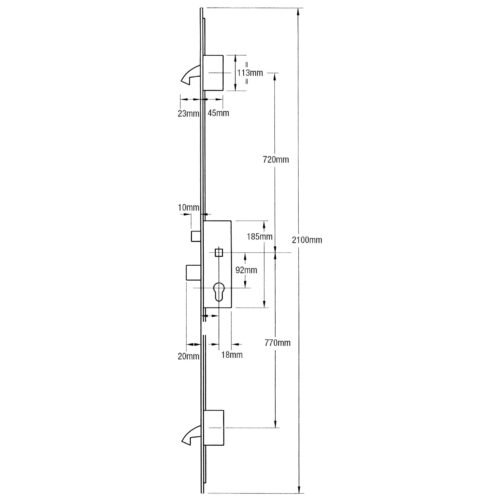

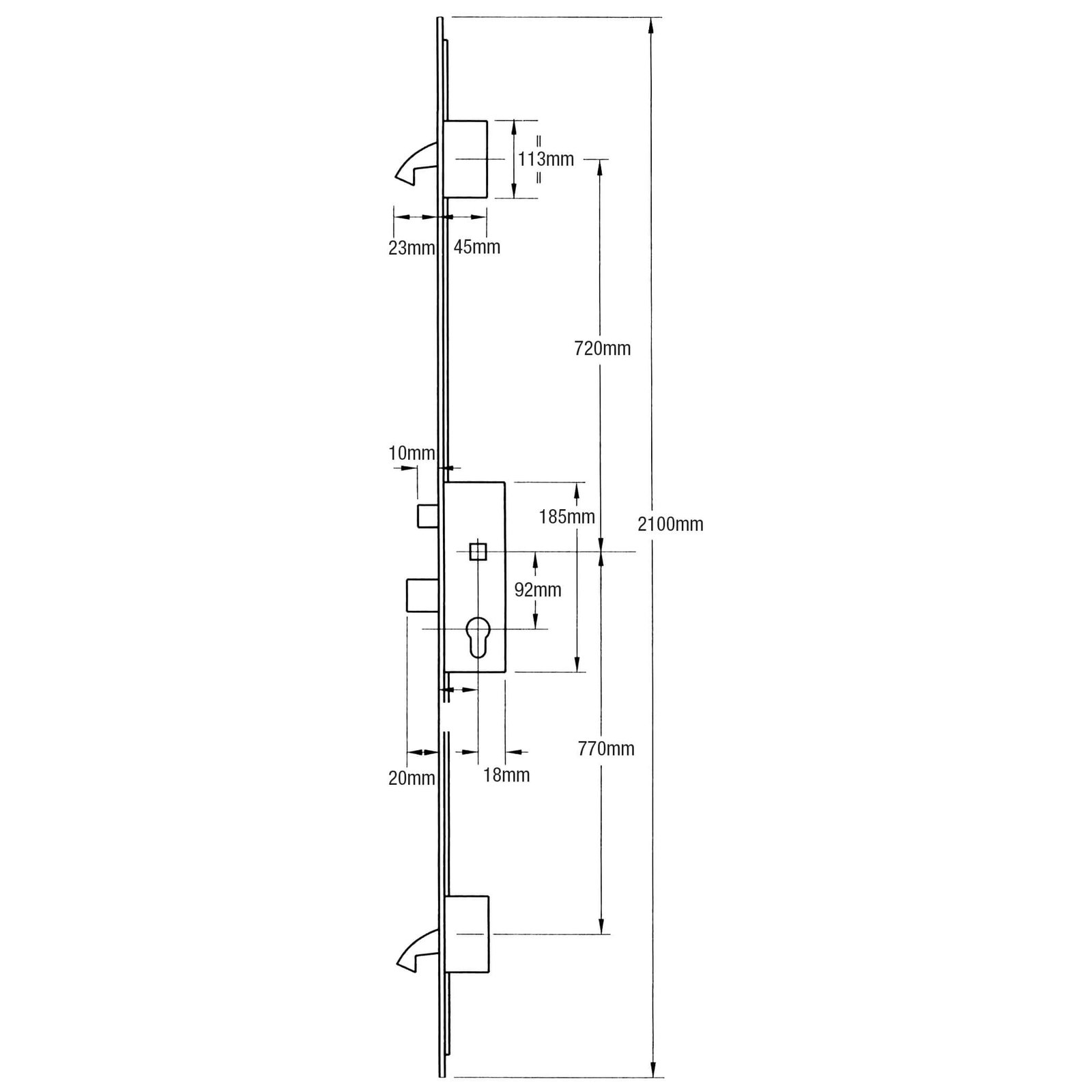

Backset: 45mm or 55mm.
Centres: 92mm.
Operation: Automatic Locking.
Latch Reversal: Handed – Non Reversible See Attached Handing Chart.
Handing Charts
Standing outside looking at the door
| Standing Outside, Door Hinged | Door Opens | Handing |
| Left | Inward | Right |
| Left | Outward | Left |
| Right | Inward | Left |
| Right | Outward | Right |
Standing inside looking at the door
| Standing Inside, Door Hinged | Door Opens | Handing |
| Right | Inward | Right |
| Right | Outward | Left |
| Left | Inward | Left |
| Left | Outward | Right |
