Maco Reach Inline Espags With Mushrooms 22mm Backset

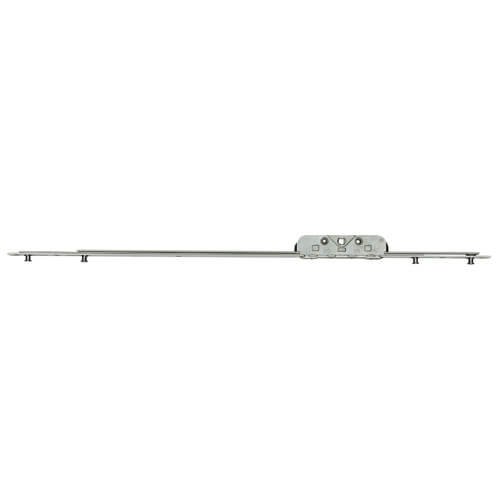

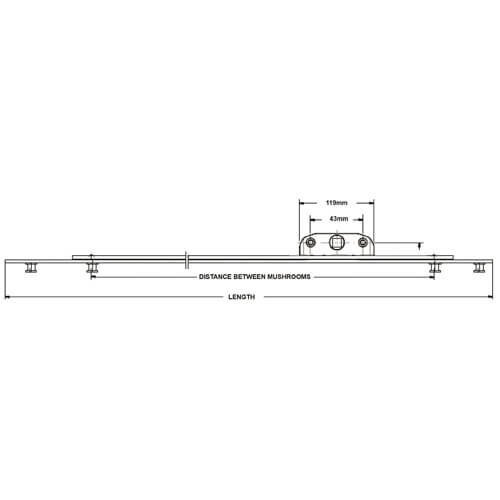

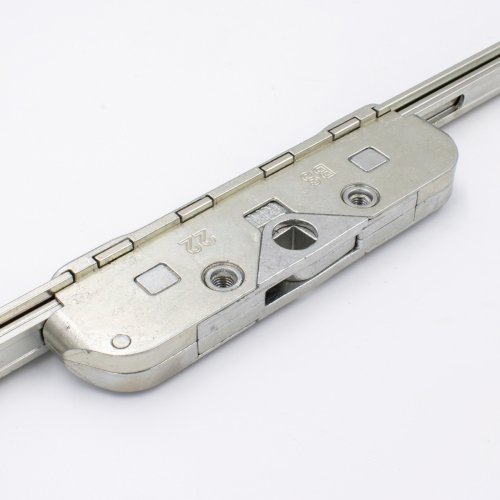

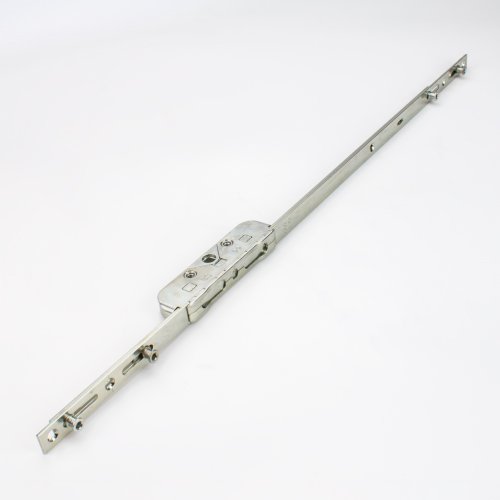

These Maco Reach Rail Espags are distinctive with a gearbox which is in a non-central position, closer to one end of the faceplate. Designed for low handle height side-hung windows, these locking espags feature a mushroom height of 7.7mm and a 7mm square spindle follower. Fixing screw centres are 43mm.

n

designed for use on BS7950 security windows.

n

Please note, these are available in both 20mm and 22mm backset options. This is the 22mm backset version, a 20mm backset version is also available
