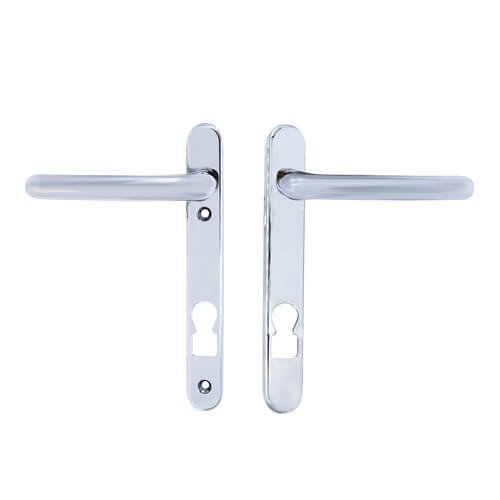

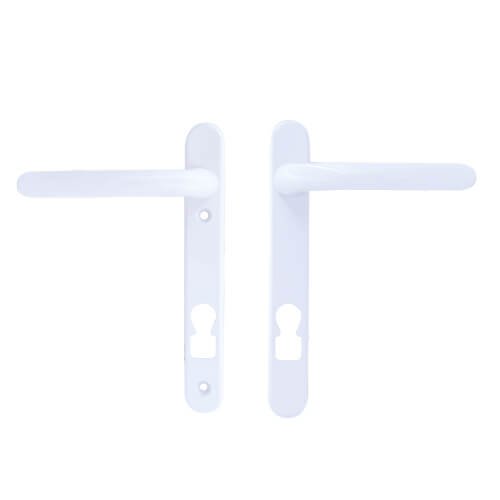

These Fab & Fix handles from the Windsor range suit the Era Surefire multipoint lock which features the unique Invincible cylinder.
rn
They have sprung 92pz internal & external levers and with a backplate of 205mm x 28mm they are available in various finishes which all meet the requirements of BS EN 1670:2007 Grade 5 (480 hours) for Corrosion Resistance.
rn
rn
rn
rn

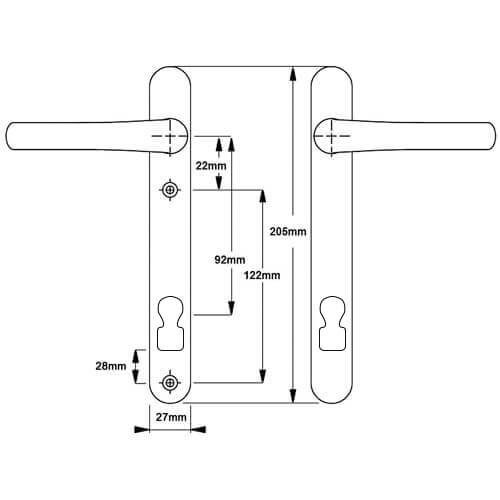

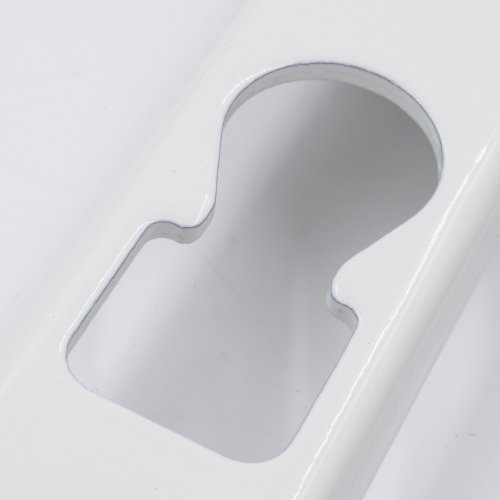

The distance between the fixing screws is 122mm with the bottom screw positioned 20mm below the euro profile cut-out.
rn
rn
rn
rn

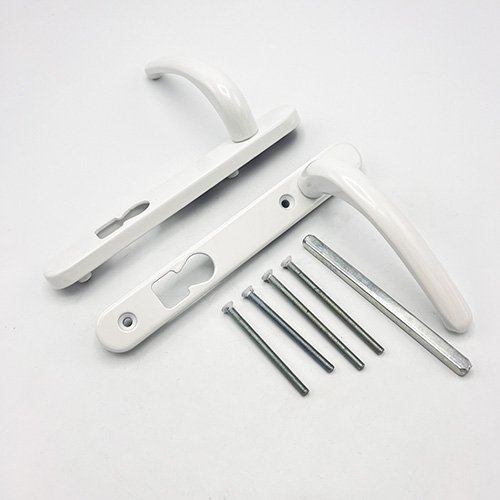

They are supplied as a pair complete with fixings consisting of spindle & 2 colour co-ordinated screws.
